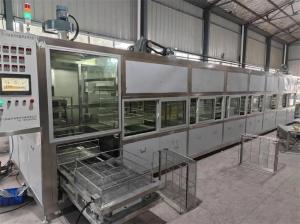

Standardized Ultrasonic Spray Cleaning Machine For Castings
The Standardized Ultrasonic Spray Cleaning Machine for Castings is engineered to deliver consistent, high-quality cleaning for cast metal components, combining ultrasonic power with precision spray technology. Designed to tackle casting-specific contaminants—such as foundry sand, metal oxides, and machining residues—it ensures thorough removal from intricate cavities, threads, and surface imperfections critical for casting performance.
This standardized system features uniform ultrasonic cavitation paired with targeted spray rinsing, guaranteeing repeatable results across high-volume production. Its automated workflow minimizes variability, adhering to strict industrial standards for casting cleanliness.
Suitable for automotive, aerospace, and machinery castings of various sizes, it integrates seamlessly into production lines, reducing rework and enhancing downstream processes like coating or assembly. Reliable, efficient, and built for durability, this machine is essential for manufacturers prioritizing casting quality and production consistency.
Technical parameters (indicators or conditions) of Spray Cleaning Machine,For Reference:
| Total power of the equipment | 60kw |
| Maximum weight of washed item (automatic cleaning) | ≤750kg |
| Size requirements for washed items | Length and width are less than 1250mm, and height is less than 800mm. |
| Cleaning pressure | 0.6Mpa |
| Rinsing pressure | 0.3Mpa |
| The heating temperature that the equipment can provide | Constant temperature ~ 80℃ adjustable |
| source | AC380V (three-phase five-wire) 60kVA |
| Water resources conditions | (Industrial tap water) ≤0.1Mpa, DN50 |
| Air source conditions | ≮0.6Mpa |
| Air conditioning cooling pipe | Φ180, to the outside |
Reference of process flow:(workpiece flow direction → left in and right out)
Manual feeding → ultrasonic cleaning → fixed-point spraying → air cutting → fixed-point spraying → mobile spraying → mobile air cutting → fixed-point air cutting → vacuum drying → cooling section → automatic unloading (truss manipulator) → full inspection and packaging
For a complete technical solution Of Spray Cleaning Machine, please contact me. We will customize the design based on your product technical requirements and factory layout.
